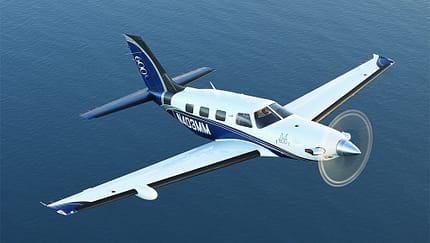

Piper M600

Muster (Type)
Light turboprop business aircraft (Leichtes Turboprop-Reiseflugzeug)

Land (Country)
USA

Hersteller (Manufacturer)
The New Piper Aircraft Inc.
2926 Piper Drive
Vero Beach, Florida 32960

Phone: 001-407/567-4361
Fax: 001-407/778-2144

Allgemeine Angaben (General)
Besatzung (Crew): 1
Passagiere (Passengers): 5

Antrieb (Power plant): Pratt & Whitney Canada PT6A-42A
Leistung (Power): Flat rated at 600 shp
Propeller (Propeller): Hartzell four-blade, constant speed, reversible, 2,08 m diameter
TBO: 3600 h with hot-sectiom inspections at 1800 h


Abmessungen (Dimensions)
Länge (Length): 9,09 m
Höhe (Height): 3,45 m
Spannweite (Wing span): 13,16 m

Masse (Weights)
Leermasse (Basic empty weight): 1656 kg
Nutzlast (payload): 1089 kg
max. Rollmasse (max. ramp weight): 2744 kg
max. Startmasse (max. take-off weight): 2722 kg

Flugleistungen (Performance)
Max. Reisegeschwindigkeit (max. cruise speed): 507 km/h
Dienstgipfelhöhe (Service ceiling): 9144 m
Startstrecke über 15-m-Hindernis (Take-off to 15 m): 803 m
Landestreckeüber 15-m-Hindernis (landing distance from 15 m): 810 m
Reichweite (Range): 2009 km (at 507 km/h)
                                  2300 km (at 476 km/h)
                                  2491 km (at 441 km/h)
                                  2748 km (at 341 km/h)
